A scanner installed behind a locker panel needs more than a lens and control board. The front surface is also part of the finished locker.

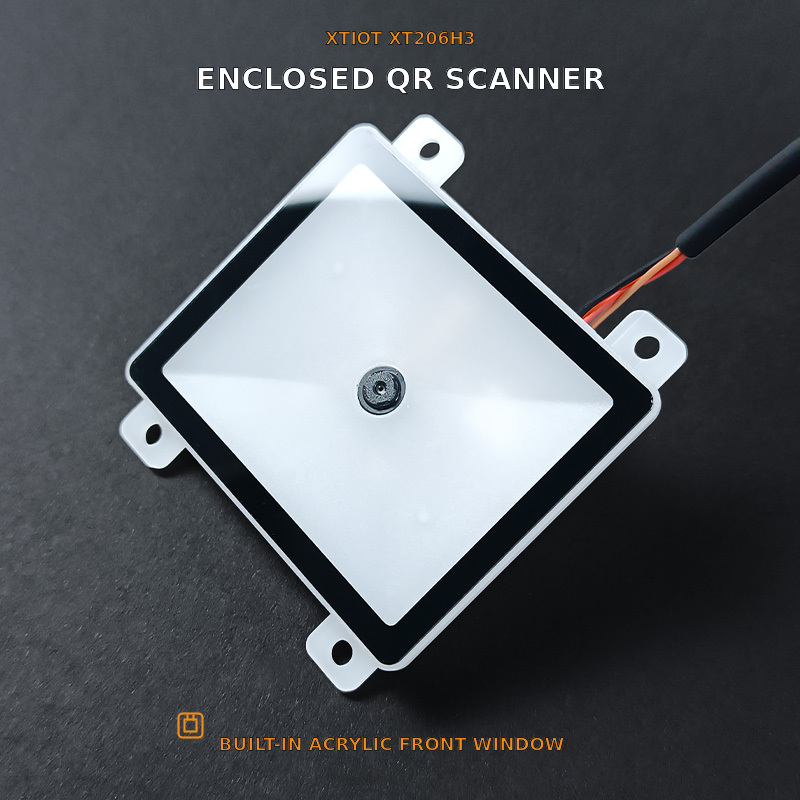

An open scan window may leave the lens and internal structure visible. The XTIOT XT206H3 uses a built-in acrylic front window to create a closed and complete scanning surface.

Enclosed Front Structure

The acrylic window is already included with the scanner module. Four screw holes are provided around the outer frame.

The XT206H3 does not use pre-applied double-sided adhesive.

Main features include:

• Built-in acrylic front window

• 1280 x 800 CMOS image sensor

• Reads 1D and 2D barcodes

• Supports paper and mobile screen codes

• USB, TTL and RS232 interfaces

• 5V, 12V and 24V power options

• Four mounting holes

The higher-resolution image sensor is suitable for QR codes displayed on mobile phones as well as printed locker access codes.

The XT206H3 can be used in security lockers, evidence lockers, staff lockers, office lockers and other storage equipment requiring an enclosed scanner front.

XTIOT manufactures embedded barcode and QR scanner modules in compact, high-resolution and enclosed-window structures.
