What the XT802E Does
The XT802E is a 10.1‑inch wall‑mount self‑service kiosk with a built‑in 2D barcode scanner. Patients scan a medication QR code or Data Matrix, and the kiosk immediately shows:
Price (including insurance copay)
Dosage instructions
Side effects and warnings
Stock availability (in‑store or pharmacy warehouse)
Generic alternatives (if available)
No pharmacist interruption for basic questions. Staff focuses on filling prescriptions and patient consultations.
Key Specifications
| Feature | Specification |
|---|---|
| Model | XT802E |
| Screen | 10.1″ HD touch, 1280×800 |
| CPU | RK3566 quad‑core, 1.8GHz |
| RAM / Storage | 4GB + 64GB |
| Scanner | Built‑in 2D CMOS, 640×480 |
| Scan Speed | Up to 300 scans/sec |
| Reads | 1D (EAN‑13, UPC) + 2D (Data Matrix, QR, PDF417) |
| OS | Android 11 (default) or Linux Debian 10 |
| Mounting | Z‑shaped wall bracket (flush mount) |
| Material | Aluminum alloy |
Built‑in Scanner – Optimized for Pharmacy Codes
| Medication Label | Code Type | XT802E Can Read It? |
|---|---|---|
| Prescription bottle | Data Matrix (GS1) | ✓ |
| Over‑the‑counter box | EAN‑13 | ✓ |
| Insurance card | QR code | ✓ (phone screen) |
| Drug info leaflet | PDF417 | ✓ |
The scanner reads from paper labels and phone screens – patients can scan insurance QR codes or digital prescriptions directly from their phone.
How the Pharmacy Kiosk Works

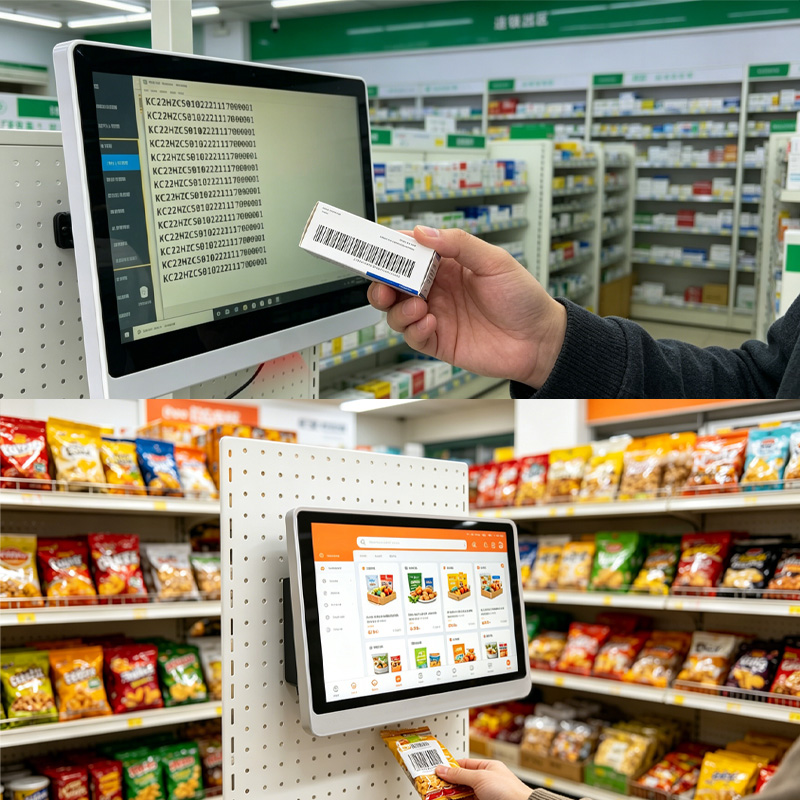

Patient scans medication package:
Patient holds drug box or bottle under scanner
Scanner reads Data Matrix / QR code (0.3 seconds)
Kiosk fetches: drug name, dosage, price, insurance coverage
Screen displays: price, instructions, side effects, stock status
Patient scans insurance card:
Patient opens insurance app on phone or holds physical card
Scanner reads QR / barcode
Kiosk displays copay amount, coverage details, remaining deductible
Patient refill request (optional):
Patient scans old prescription bottle barcode
Kiosk shows: "Refill available. Tap to request."
Patient taps → refill request sent to pharmacy system
Where to Mount
| Location | Placement | Purpose |
|---|---|---|
| Pharmacy counter | Wall beside pickup window | Quick price/info lookup before waiting in line |
| Waiting area | Pillar or wall | Self‑service while pharmacist is busy |
| Drive‑through (indoor) | Near window | Scan before reaching window |
| 24‑hour pharmacy lobby | Entrance wall | After‑hours price checks |
Why Pharmacy Operators Choose XT802E
| Problem | Solution |
|---|---|
| Patients constantly interrupt pharmacist for price checks | Self‑service kiosk answers basic questions |
| Patients don‘t understand dosage or side effects | Kiosk displays full drug information |
| Long lines at pickup counter | Kiosk handles price and info lookup |
| Insurance copay confusion | Scan card → show exact copay |
| After‑hours questions (24‑hour pharmacy) | Kiosk works without staff |
Connectivity
| Feature | Use |
|---|---|
| Ethernet | Primary connection to pharmacy system |
| WiFi | Where Ethernet isn‘t available |
| PoE+ | One cable for power + network – simple installation |
| USB | Receipt printer (optional) |
Hardware Highlights
| Feature | Benefit |
|---|---|
| Built‑in scanner | No external device – clean counter |
| 300 scans/sec | No queue at kiosk |
| Wide field of view | Patient doesn‘t need perfect alignment |
| Reads phone screens | Digital insurance cards, app‑based prescriptions |
| Flush wall mount | Saves counter space |
| Aluminum alloy | Easy to clean – important for pharmacy |
OEM Customization
| Customization | MOQ |
|---|---|
| Custom logo | 1,000 pieces |
| Custom color | 100 pieces |
| Pre‑loaded pharmacy app | Contact sales |
Need a pharmacy kiosk that scans drug QR codes and displays medication information? Contact XTIOT for specs and integration support.
