XT802E Android Touch Screen Kiosk – Built‑in 2D Scanner for Self‑Checkout

Shenzhen Xingtong IOT Technology Co., Ltd.

Barcode Scanner Manufacturer with development & Invention ability

What XT802E Is

The XT802E is a 10.1-inch wall‑mount self‑service kiosk with a built‑in 2D barcode scanner, designed for retail self‑checkout, price verification, and customer self‑service applications.

Target industries: Supermarkets, convenience stores, pharmacies, electronics retailers, and hospitality.

Key Specifications (For Engineers)

Feature	Specification
Model	XT802E
Display	10.1″ HD capacitive touch, 1280×800
CPU	RK3566 quad-core, 1.8GHz
RAM / Storage	4GB + 64GB (expandable)
Scanner	Built‑in 2D CMOS scan engine, 640×480
Scan Speed	Up to 300 scans/sec
Barcode Support	1D (Code128, EAN‑13, UPC) + 2D (QR, Data Matrix, PDF417, Aztec)
Operating System	Android 11 (default), Linux Debian 10 (optional)
Connectivity	2.4G/5G WiFi, Bluetooth 5.0, Ethernet, PoE+ (optional)
Interfaces	USB 3.0×1, USB 2.0×3, RJ45, COM (RJ11), Audio
Mounting	Z‑shaped wall bracket (standard), VESA (optional)
Material	Aluminum alloy
Operating Temp	-20°C to +60°C
Power	12V DC or PoE+ (48V)
Certifications	CE, FCC, RoHS
Warranty	1 year

Built-in Barcode Scanner – Key Specs for Engineers

Feature	Specification	Why It Matters
Scan Speed	Up to 300 scans/sec	Fast checkout – no customer wait
Sensor	640×480 CMOS	Reads high‑density 2D codes (Data Matrix, PDF417)
Media Support	Paper labels + phone screens	Product barcodes AND mobile coupons/payments
Field of View	40°H, 29°V, 49.4°D	No perfect alignment needed
Scan Modes	Trigger, induction, continuous, command	Flexible for various self‑service workflows
Auto‑sense	Yes – detects barcode automatically	No button for customer – just hold item under scanner

OS & Connectivity

Feature	Specification
Operating System	Android 11 (GMS certified) – runs Play Store apps
Alternative OS	Linux Debian 10 (optional)
Network	2.4G/5G WiFi, Ethernet, optional PoE+
Bluetooth	5.0 – connect printers, payment terminals
USB Ports	4 total – external scanners, keyboards, storage
COM Port	RJ11 – serial connection to legacy POS systems

Self‑Checkout Workflow

Customer approaches XT802E kiosk
         ↓
Customer places product barcode under scanner window
         ↓
Scanner reads 1D/2D barcode (0.3 seconds)
         ↓
Kiosk displays product name, price, running total
         ↓
Customer continues scanning all items
         ↓
Customer taps “Checkout” → selects payment method
         ↓
Kiosk displays payment QR code (or integrates with card reader)
         ↓
Customer scans QR code with phone (Alipay/WeChat Pay/Google Pay)
         ↓
Payment processed → receipt printed (optional)
         ↓
Customer exits

Typical checkout time: 30‑60 seconds for 10 items

Where to Mount

Location	Mounting	Purpose
End cap	Z‑bracket flush mount	Price check, impulse buys
Checkout lane	VESA (optional)	Self‑checkout station
Customer service desk	Z‑bracket	Price lookup, returns
Pharmacy counter	Z‑bracket	Drug info lookup, price check

Why Engineers Choose XT802E

Requirement	XT802E Solution
All‑in‑one hardware	Screen + scanner + computer – no separate components
Fast barcode reading	300 scans/sec, reads phone screens, wide FOV
Simple mounting	Z‑bracket flush mount – saves counter space
Android ecosystem	Run any Play Store self‑checkout app
Simple cabling	PoE option – one cable for power + network
Industrial durability	Aluminum alloy, -20°C to +60°C
SDK support	For custom scanning applications

OEM Customization Options

Customization	MOQ	Details
Custom logo	1,000 pieces	Silkscreen on housing

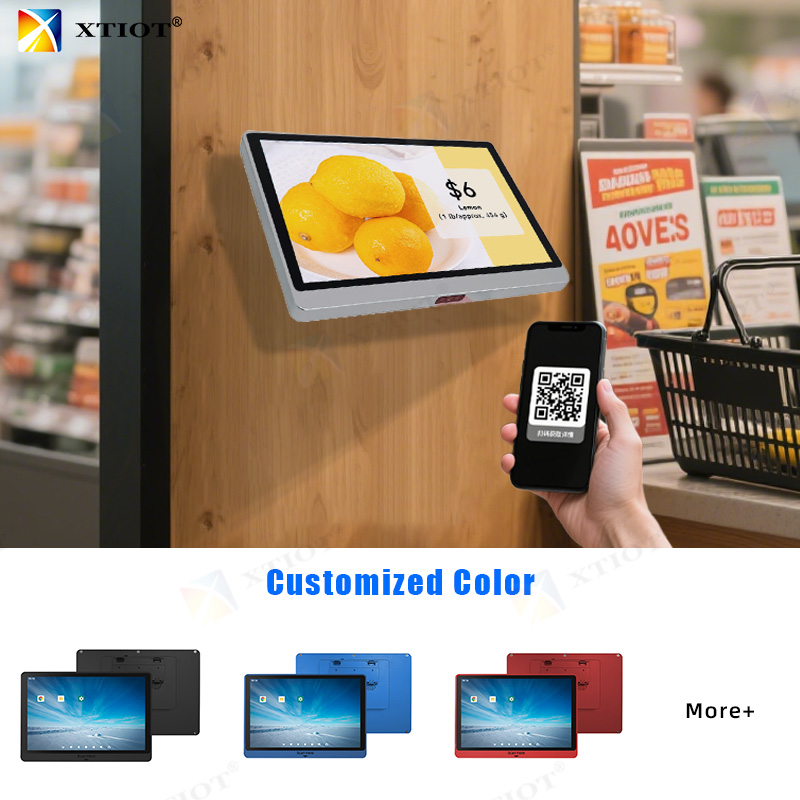

Custom color	100 pieces	Silver, black, red, blue, orange, green
Custom packaging	2,000 pieces	Branded boxes
Pre‑loaded software	Contact sales	Your APK installed before shipping

Need an Android self‑service kiosk with integrated barcode scanner for your retail deployment? Contact XTIOT for engineering specs, SDK documentation, and integration support.
