What Parking Payment Kiosks Need

Self-service parking kiosks (at exits or in walk‑up pay stations) must handle:

XTIOT Fixed Scanners for Parking Kiosks

🔹 XT206M3 – Auto-Sense Embedded QR Reader

Best for: Wall‑mounted pay stations, exit lane kiosks

• 640×480 CMOS, reads 1D (Code128, Code39), 2D (QR, Data Matrix)

• Auto-sensing mode – user holds ticket or phone under scanner, reads automatically – no trigger button

• Reads wrinkled / curved paper tickets – typical after being in wallet

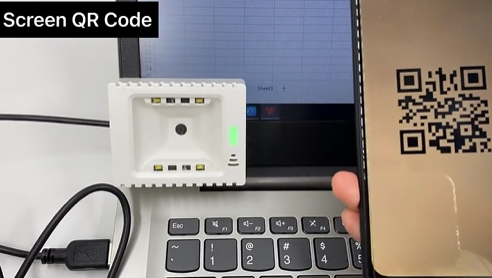

• Reads phone screens – payment QR from any mobile wallet

• 300 scans/sec – fast exit, no queue

• Small footprint – fits inside kiosk housing

• USB, RS232, TTL – simple connection to kiosk controller

• IP54 rated – outdoor parking lot environment

🔹 XT2002D – Payment QR Optimized Module

Best for: High‑volume payment kiosks

• Specifically optimized for mobile payment QR codes – Alipay, WeChat Pay, Apple Pay, Google Pay

• Reads from dim screens, screen protectors, direct sunlight

• 300 scans/sec

• No SDK needed – plug and scan

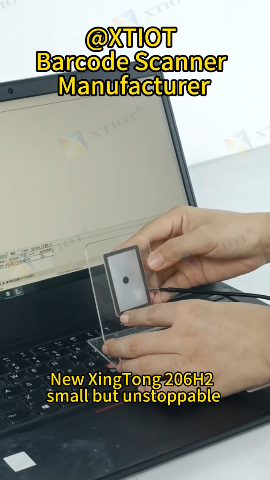

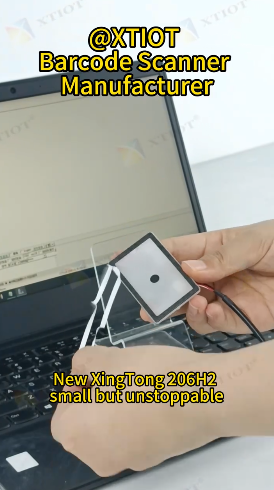

🔹 XT206H2 – Ultra‑Thin for Space‑Limited Kiosks

Best for: Slim kiosk designs, retrofit installations

• 11mm thin – fits into narrow bezels

• 3M adhesive backing – easy installation

• 3V–24V wide voltage – works with kiosk power supply

Parking Kiosk Workflows

Walk‑Up Pay Station (Entry Ticket)

Driver takes parking ticket from entry gate
         ↓
At pay station, driver scans ticket barcode under XT206M3 scanner
         ↓
Scanner reads ticket code → kiosk displays: entry time, duration, amount due
         ↓
Driver selects payment method:
   - Option A: Insert cash / card (not scanner-related)
   - Option B: Scan payment QR from phone
         ↓
If Option B: Driver opens Alipay/WeChat Pay → payment QR appears on phone
         ↓
Driver holds phone under scanner → XT206M3 reads payment QR
         ↓
Payment processed → ticket validated (or gate pass printed)
         ↓
Driver uses validated ticket to exit gate

Exit Lane Kiosk (Ticketless / Plate‑Based)

Driver pulls up to exit gate
         ↓
System asks: "Scan QR code from app or insert parking ticket"
         ↓
Driver opens parking app → QR code appears on phone
         ↓
Driver holds phone under XT206M3 scanner at exit kiosk
         ↓
Scanner reads QR → system looks up plate, duration, amount
         ↓
Payment deducted automatically (or driver scans payment QR)
         ↓
Gate opens

Where Scanner Fits in Parking Kiosk

Why Engineers Choose XTIOT for Parking Kiosks

Example: Airport Parking Exit Lane Kiosk

Hardware:

• XT206M3 embedded in exit kiosk at driver window height

• Outdoor‑rated housing

Driver experience:

1. Pulls up to exit gate

2. Opens parking app → QR appears on phone

3. Holds phone out window toward kiosk scanner

4. Scanner reads QR (0.3 seconds)

5. Gate opens – no ticket, no cash

Time: Under 10 seconds

Example: Mall Parking Walk‑Up Pay Station

Hardware:

• XT206M3 in pay station at pedestrian walkway

• Ticket slot nearby

Driver experience:

1. Takes ticket from car before walking to mall

2. At pay station, inserts ticket into slot (or scans under scanner)

3. XT206M3 reads ticket barcode → displays amount

4. Opens Alipay → payment QR on phone

5. Holds phone under scanner → payment complete

6. Ticket validated – use at exit gate

Why This Matters for Parking Operators

Additional Parking Use Cases

Need a fixed QR scanner for your parking payment kiosk? Contact XTIOT for engineering specs and integration support.
