What Airport Self-Service Terminals Need

Airport kiosks (check-in and bag drop) must read two types of codes:

XTIOT Scanners for Airport Self-Service

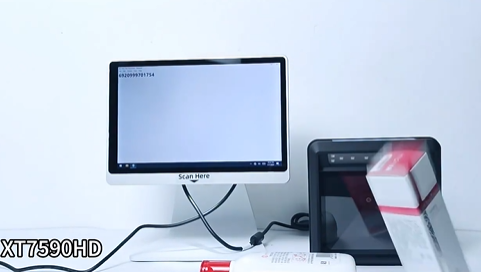

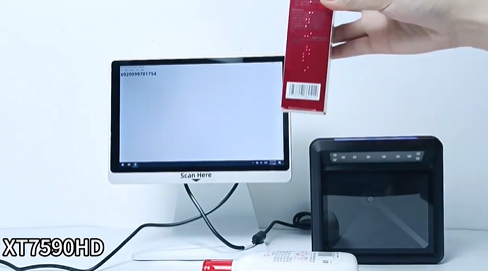

🔹 XT7590HD – Desktop Megapixel Scanner for Check-in Kiosks

Best for: Self-service check-in kiosk (kiosk-mounted)

• Megapixel global shutter CMOS – captures barcodes on phone screens, paper boarding passes, and curved bag tags

• Reads 1D (Code128, IATA standard), 2D (PDF417, QR, Aztec, Data Matrix)

• Optimized for phone screens – works with dim screens, glare, screen protectors

• Continuous scan mode (auto-sense) – no trigger button

• USB, RS232 – easy connection to kiosk mainboard

Application: Passenger checks in, scans boarding pass QR, prints bag tag

🔹 XT206M3 – Embedded Auto-Sense Module for Bag Drop

Best for: Self-service bag drop station (embedded in counter)

• 640×480 CMOS, 300 scans/sec

• Auto-sensing mode – passenger holds bag tag under scanner, reads automatically

• Reads glossy / curved surfaces – IATA bag tags

• Small footprint – fits inside slim bag drop counter

• USB, RS232, TTL

Application: Passenger scans bag tag after printing, drop door opens

🔹 XT2002D – Payment / Mobile QR Optimized

Best for: Baggage fee payment station

• Optimized for mobile payment QR codes – passengers pay extra baggage fee via phone

• Reads from dim screens, screen protectors

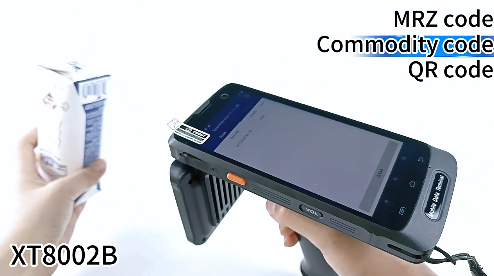

🔹 XT8002B – Handheld PDA for Baggage Reconciliation

Best for: Ramp agents, baggage handlers, lost luggage desk

• Android 10.0, 8-core 2.0GHz CPU

• 4GB RAM + 64GB storage

• 5.5″ HD touch screen – glove-friendly

• 1D + 2D barcode scanner – reads IATA bag tags, QR, PDF417

• 4G / WiFi – real-time sync with baggage tracking system

• IP65 – survives rain, drops, ramp environment

• 7200mAh battery – full shift

Application: Agent scans bag tag to locate mishandled luggage

Airport Self-Service Workflows

Self-Service Check-in + Bag Tag Print

Passenger arrives at check-in kiosk
         ↓
Kiosk displays: "Please scan boarding pass QR code from phone or paper"
         ↓
Passenger holds phone under XT7590HD scanner
         ↓
Scanner reads boarding pass barcode (0.3 seconds)
         ↓
Kiosk retrieves booking, seat selection
         ↓
Passenger confirms → kiosk prints bag tag(s)
         ↓
Passenger proceeds to bag drop station

Self-Service Bag Drop

Passenger arrives at bag drop station
         ↓
Station displays: "Scan your bag tag barcode"
         ↓
Passenger holds bag tag under XT206M3 scanner
         ↓
Scanner reads bag tag (0.3 seconds)
         ↓
System verifies: tag matches booking, flight not closed
         ↓
Bag drop door opens → passenger places luggage on conveyor
         ↓
Weight confirmed → door closes → bag enters system

Baggage Reconciliation (Ramp Agent)

Flight lands – luggage arrives at carousel
         ↓
Passenger reports missing bag at lost luggage desk
         ↓
Agent uses XT8002B PDA to scan bag tag barcode from passenger‘s receipt
         ↓
System shows: last known location, flight number, handling agent
         ↓
Agent coordinates retrieval

Where Each Scanner Fits

Why Engineers Choose XTIOT for Airport Applications

Example: Airport Self-Service Bag Drop

Hardware:

• XT7590HD at check-in kiosk

• XT206M3 embedded in bag drop counter

• XT8002B PDA for ramp agents

Passenger experience:

1. Scans mobile boarding pass at kiosk → prints bag tag

2. Walks 10 meters to bag drop station

3. Holds tag under scanner → door opens

4. Places bag on conveyor → done

Time: Under 2 minutes from kiosk to bag drop

Agent experience:

• Ramp agent scans bag tag with PDA at aircraft side

• System confirms bag loaded → passenger sees "Bag loaded" in app

Why This Matters for Airport Operators

Need barcode scanners for airport self-service check-in or bag drop? Contact XTIOT for engineering specs and integration support.
